White / Warm White LED High Bay Lights, IP22 120W 100 - 240VA For Workshop

Ask Latest Price
Video Channel
Place of Origin :China
Brand Name :Hi-semicon
Model Number :HZ-GKD120WA
Certification :CE ROHS
MOQ :50
Packaging Details :Carton box
Delivery Time :30days
Payment Terms :TT
Supply Ability :100,000 pcs/Month
Price :Negotiable
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description

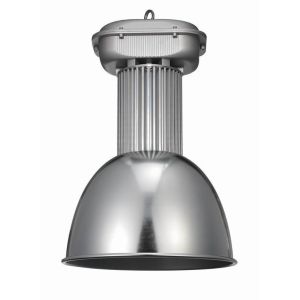

White / Warm White LED High Bay Lights, IP22 120W 100 - 240VA For Workshop

The LED high bay family is the energy solutions for warehouse,workshop and other industrial and commercial applications.It's easy to retrofit the existing high-pressure mercury high bay and HPS high bay,allows up 65% energy savings.

Features:

  • Phase change heat dissipation technology keeping the junction temperature at 65℃ .
  • Heat sink for passive cooling
  • High-Efficiency bridgelux multi-chips led source
  • 150W is equivalent to the brightness of 400W high pressure sodium lamp.
  • Up to 50, 000 hours service life.
  • Easy to install.

Phase Change Liquid Cooling systems : The Hi-semicon advantage

Hi-semicon’s Phase Change Liquid Cooling systems remove more heat than competitive technologies which allows Hi-semicon LED products to burn brighter, last longer, and cost less. Typical competitive LED systems are comprised of silver and copper conductivity and phase change liquid cooling construction, and an external heat sink. The emitter houses the LED die, optics, and a heat sink slug used to draw heat away from the die. The conductor is made of silver and copper, which is mechanically attached to the heat sink .Hi-semicon takes a more efficient approach to reducing operating temperature by phase change cooling system, which is thermally resistant and actually insulates the LED package from the heat sink.

Parameter:
Item number HZ-GKD120WA
Power: 120W
Lumen 9600lm
Light efficacy 80lm/W
CCT 3000-6000K
CRI 75
Power factor 0.95
Power supply efficency 90%
Emitting angle >90
Beam angle 45º, 120º
Protection class IP22
Mounting height 10m-12m

120W LED High Bay size draft:

120 degree reflector

45 degree reflector

Photometric report:

45 degree reflector

120 degree reflector

Applications:

Workshop, warehouse, toll station, gas station, supermarket, gymnasium, exhibition hall, and other public lighting places and etc.
